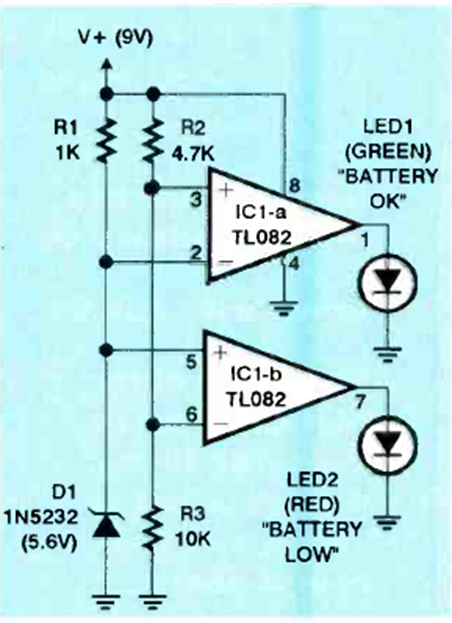

Two comparators are used to indicate the status of a 9 V battery. The circuit is from Electronics Now magazine, July 1998. Zerners of other values can be used to monitor other voltages.
Battery Status Indicator (CB26051E)
- Details
- Written by: Newton C. Braga
