555 Voltage Monitor (CB26309E)

Details
Written by: Newton C. Braga

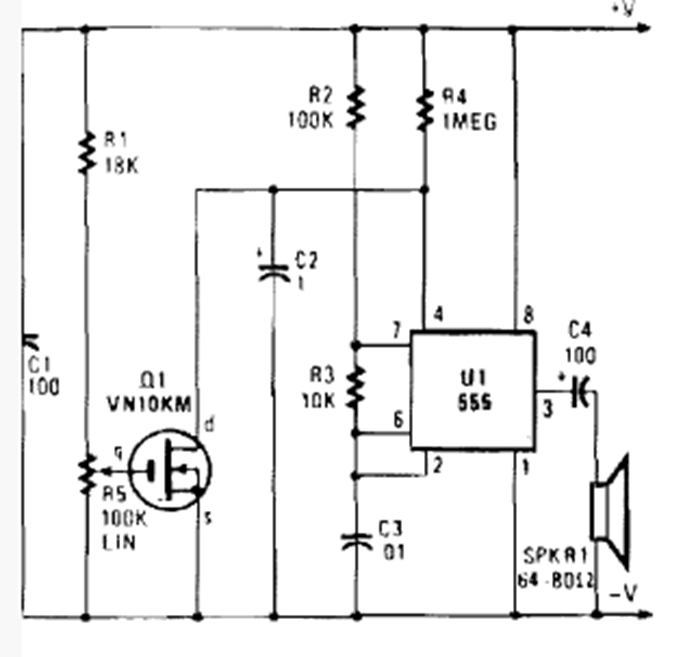

Found in a Popular Electronics from the 1990s, this circuit monitors the voltage of a power supply or battery. The trigger voltage is adjusted with a potentiometer.
