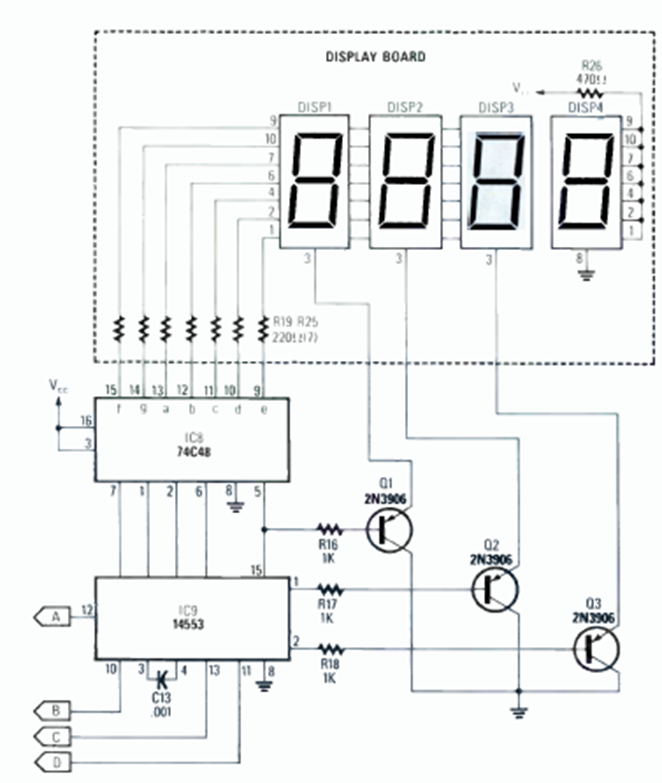

This circuit is the digital indicator for the previous circuit and can be used with similar circuits. The circuit is from an article in Radio Electronics magazine, June 1987.
| Clique na imagem para ampliar |
Indicator for previous tachometer (CB25052E)
- Details
- Written by: Newton C. Braga
