Current Booster (CB26254E)

Details
Written by: Newton C. Braga

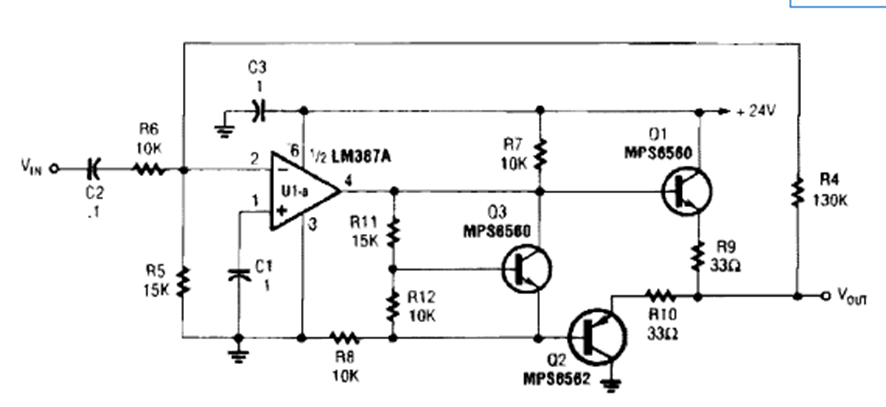

This current boosting circuit uses an op-amp and 3 transistors. The current depends on Q1. The circuit is from the 1995 Encyclopedia of Electronic Circuits Volume 5.




| Clique na imagem para ampliar |
