Vacuum Gauge (CB26175E)

Details: Written by: Newton C. Braga

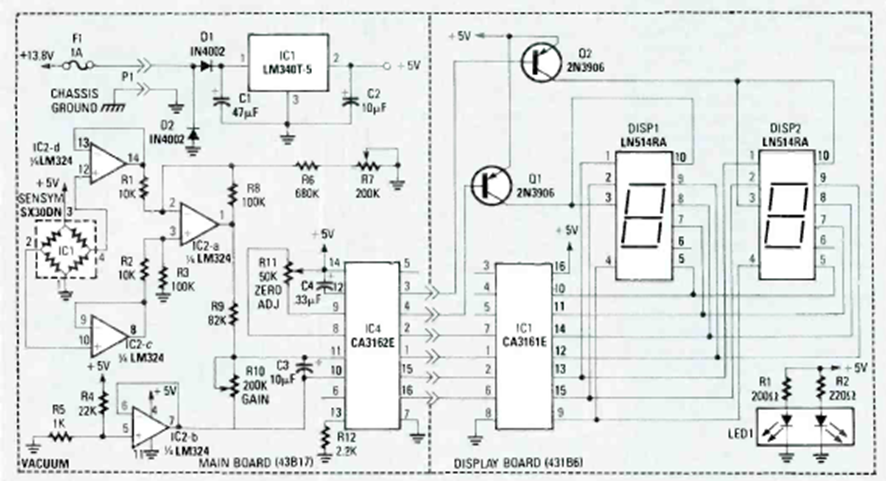

This two-digit digital pressure gauge was found in the 1992 special edition of Radio Electronics Experimenter. A/D converter integrated circuits are uncommon today.
