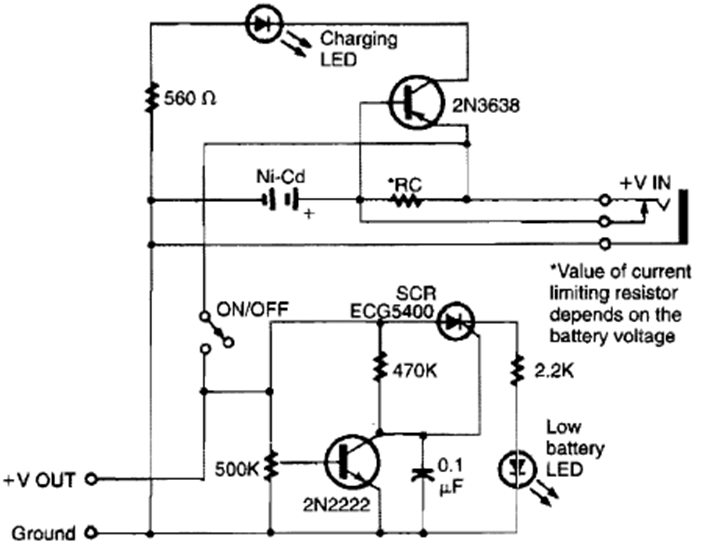

Smart Charger (CB26305E)

This circuit was found in Radio Electronics magazine from the 90's. The circuit is for small NiCad batteries.
