7400 Oscillator (CB25015E)

Details
Written by: Newton C. Braga

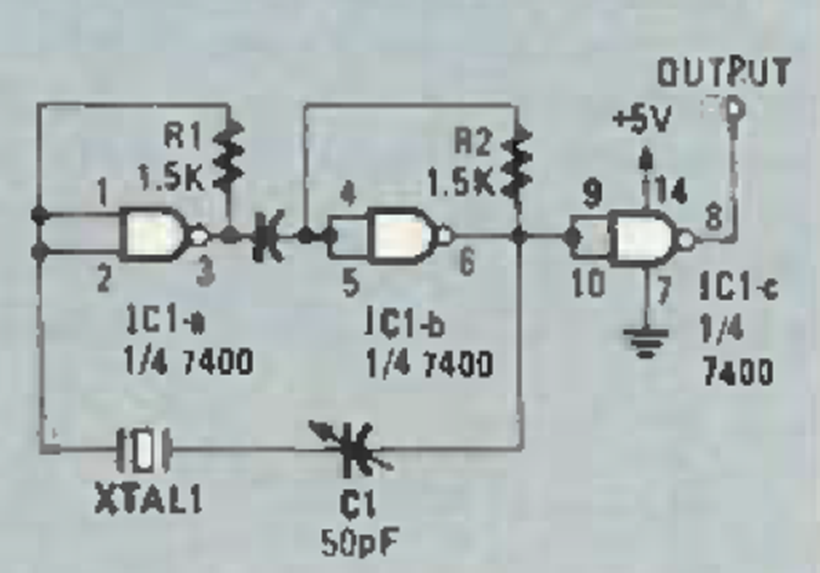

This is one of the many 7400 oscillators we have in our circuit bank. It is crystal controlled and must be powered with a voltage of 5 V.




| Clique na imagem para ampliar |
