TTL Oscillator 7408 (CB25014E)

Details
Written by: Newton C. Braga

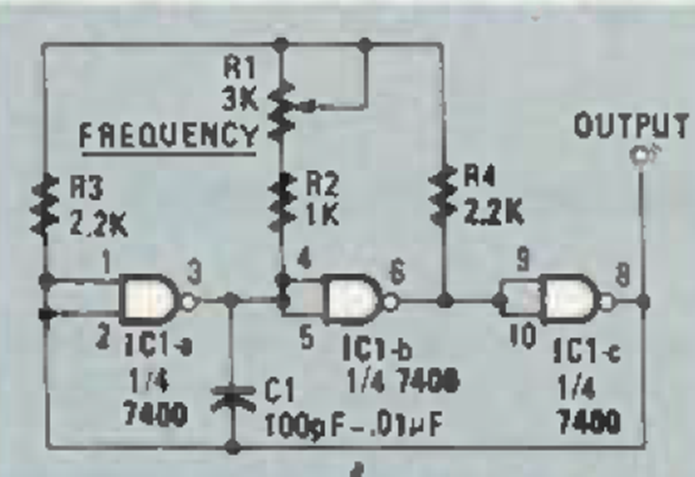

This adjustable frequency circuit was found in December 1986, Radio Electronics magazine. The base frequency is given by C1 and the power supply must be 5 V.




| Clique na imagem para ampliar |
