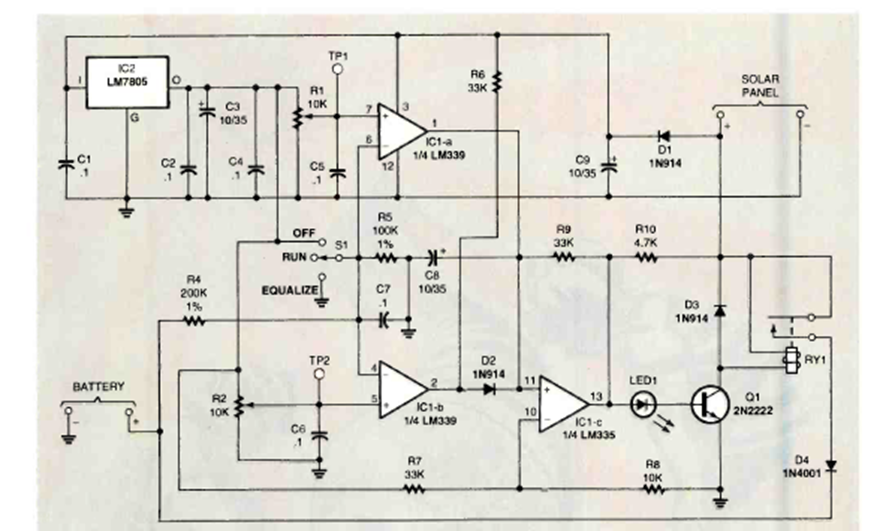

Solar Charger Controller (CB26028E)

We found this circuit in the October 1997 Electronics Now magazine. The circuit controls a solar panel used to recharge batteries.

| Clique na imagem para ampliar |
