Modulated Oscillator (CB26007E)

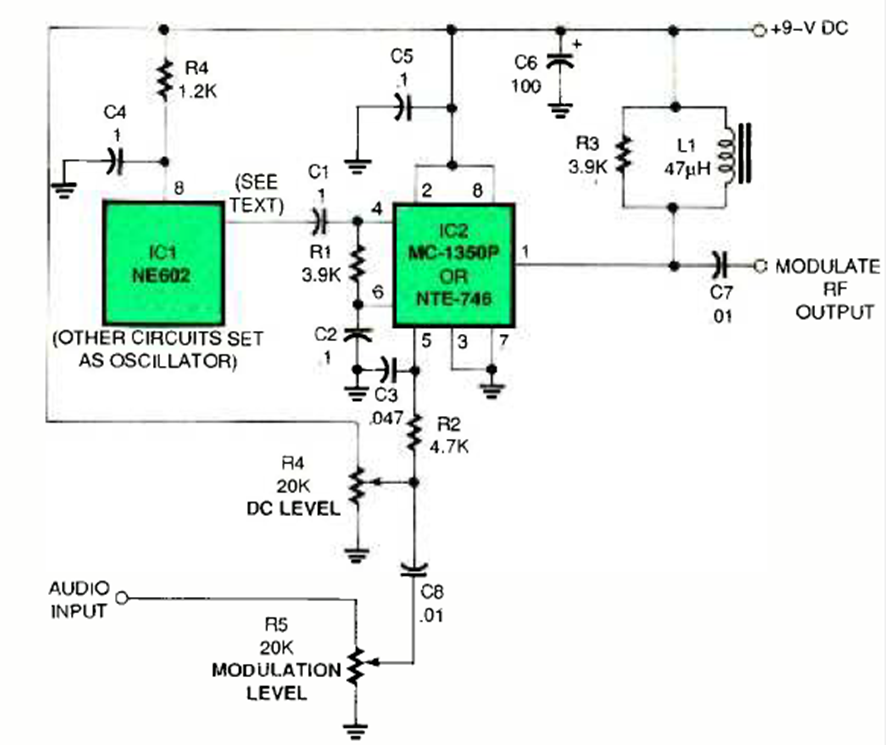

We found this circuit that can reach 50 MHz in the February 1997 Electronics Now magazine. The integrated circuits used are not very common today.

| Clique na imagem para ampliar |

Transistor testing center (CB23768E)
We found this test circuit in a March 1967 Radio Electronics. The circuit uses a zener-regulated supply and...
Standing Wave Meter (CB16898E)
We found this circuit in a 1995 publication. It applies to transceivers in the citizen's range (11...
Digital sinusoidal generator (CB24473E)
The figure shows how to associate flip-flops in a shift register to obtain a lower frequency...
