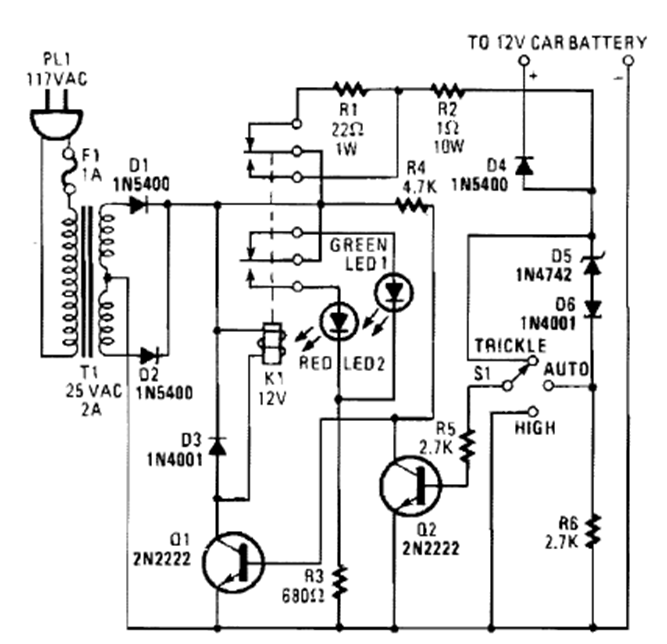

Battery Charger (CB26303E)

This automatic battery charger was found in a Popular Electronics from the 90s. The circuit uses a relay for automatic shutdown.

| Clique na imagem para ampliar |
