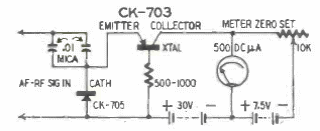

This is a circuit from the time when some still called the transistor a crystal triode. It appeared in the Radio Electronics magazine of June 1950 and used an indicating instrument.
Transistor Signal Tracer (CIR22511E)
- Details
- Written by: Newton C. Braga
