Component Tester (CB26027E)

Details
Written by: Newton C. Braga

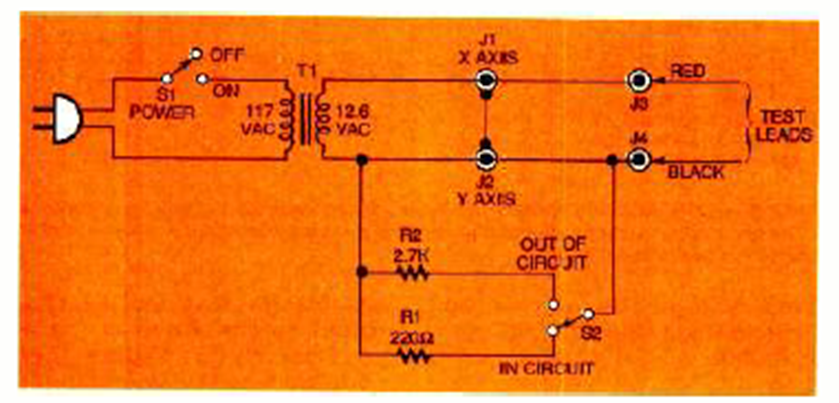

This simple component tester was found in the October 1997 issue of Electronics Now magazine. The circuit is powered by power grid through a simple power supply.
