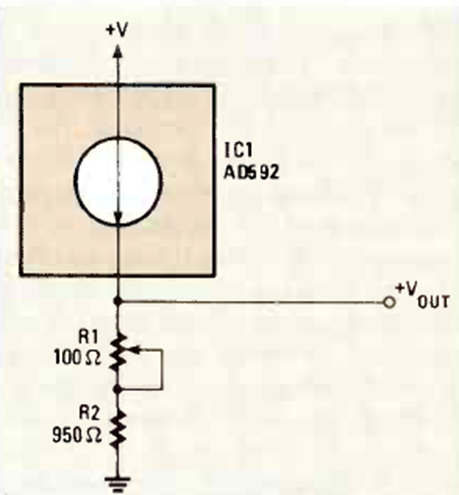

The figure shows the basic circuit of a temperature sensor with the AD592 thermometric IC. This circuit can be used from -25º C to 150º C. The circuit is from Radio Electronics from March 1987. The power supply ranges from 4 to 30V.
AD592 Temperature Transducer (CB25046E)
- Details
- Written by: Newton C. Braga
