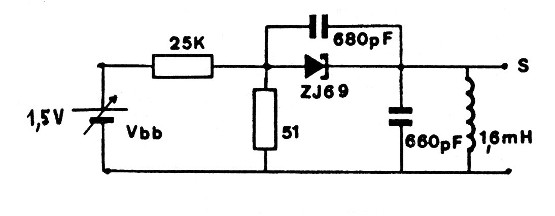

This basic oscillator with tunnel diode generates a 100 kHz signal with 1 uW output power. The circuit is from a technical documentation of the 80's and requires for power a source from 0 to 1.5 V.
100 kHz Tunnel Diode Oscillator (CB1335E )
- Details
- Written by: Newton C. Braga
