Analog Data Isolator (CB6523E)

Details
Written by: Newton C. Braga

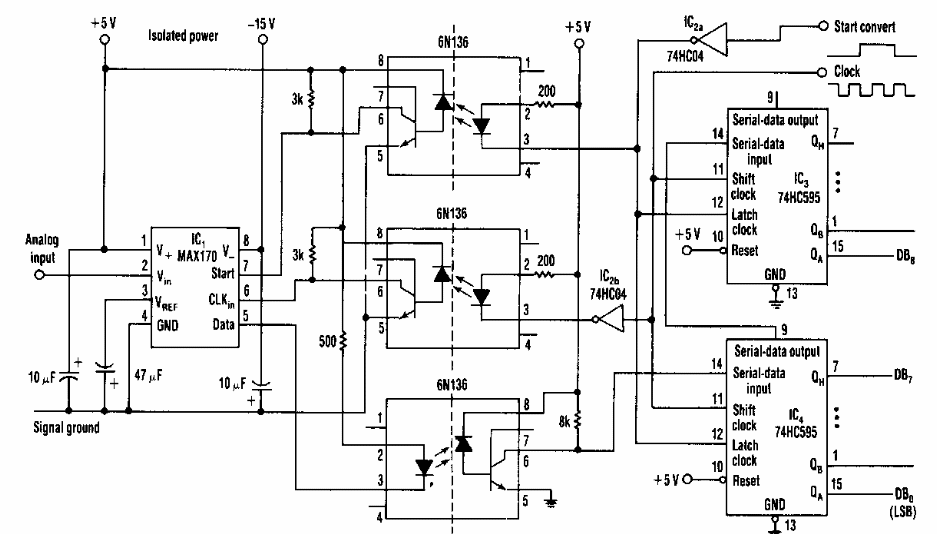

    We found this circuit in an 80's Electronic Design. It makes use of couplers of the time that can be replaced with equivalents.
