Low Voltage Regulator (CB6406E)

Details
Written by: Newton C. Braga

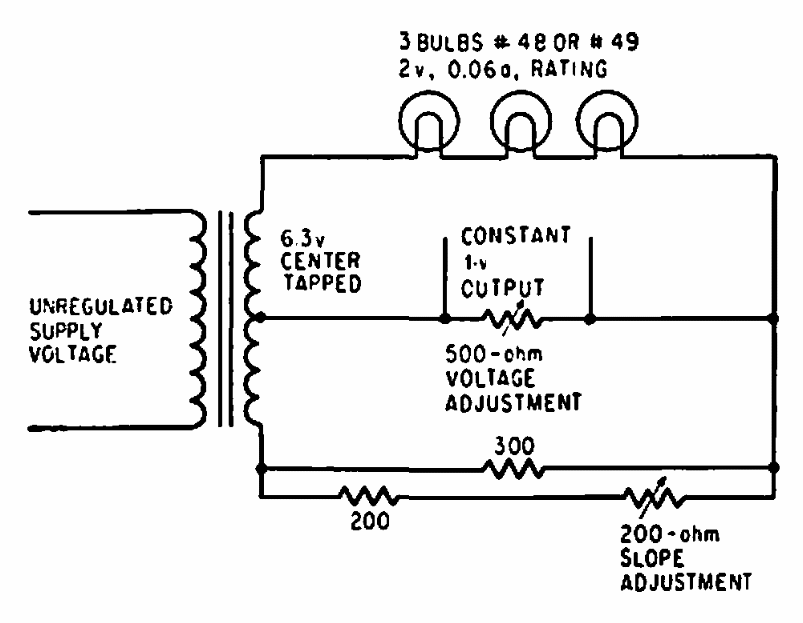

     This interesting circuit from 1967 documentation uses three series lamps to regulate the voltage on a 1 V load. The circuit keeps the output voltage constant when the input voltage ranges from 105 to 125 V.
