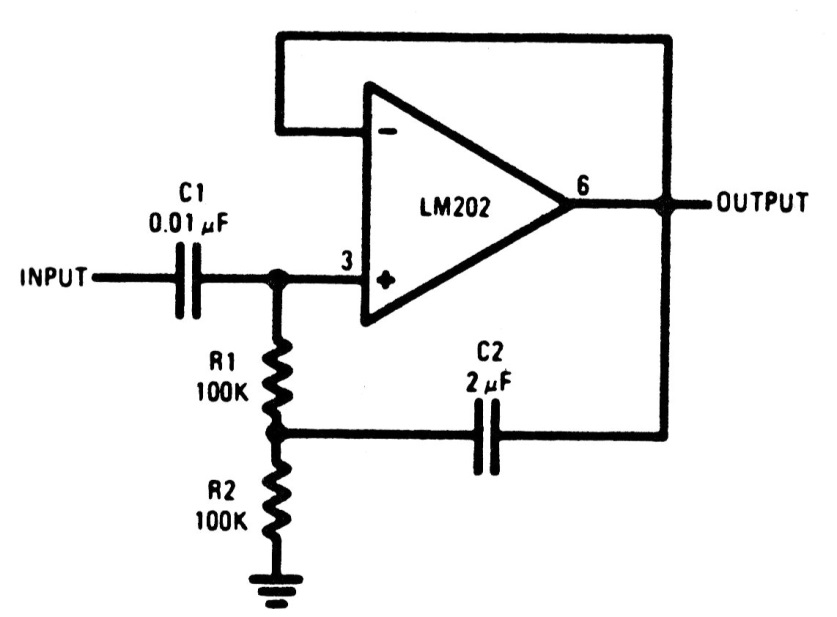

This voltage amplifier with operational amplifier was found in an old documentation. However, it can be implemented with modern equivalents. The circuit must be powered by a symmetrical source.
| Clique na imagem para ampliar |
Operational with High Input Impedance (CB3950E)
- Details
- Written by: Newton C. Braga
