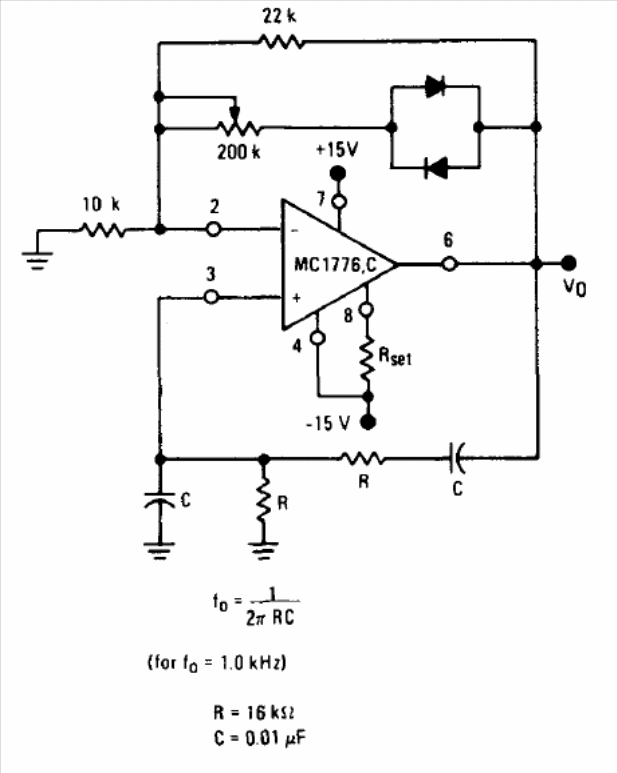

We found this circuit in the Motorola Linear Databook of 1993. It is the traditional configuration with operational amplifier and general-purpose diodes that can be implemented with equivalent operational amplifiers.
Wien Bridge Oscillator (CB4024E)
- Details
- Written by: Newton C. Braga
