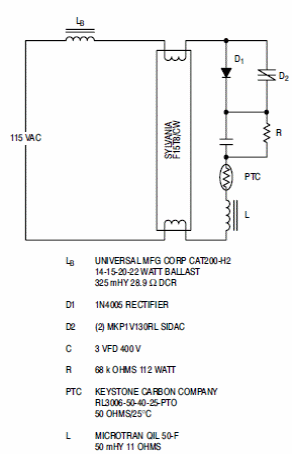

In the figure we have an application of ON Semiconductor's own semiconductor manual from the 80's. The component values are given along with the diagram. The circuit is for the 110 V mains. but can be adapted to 220V network.
SICAD Fluorescent starter (CB4245E)
- Details
- Written by: Newton C. Braga
