Unlike the previous one, this circuit is intended for the reception of frequency modulated signals transmitted by the power grid. The circuit is from a Radio Electronics from February 1989.
| Clique na imagem para ampliar |

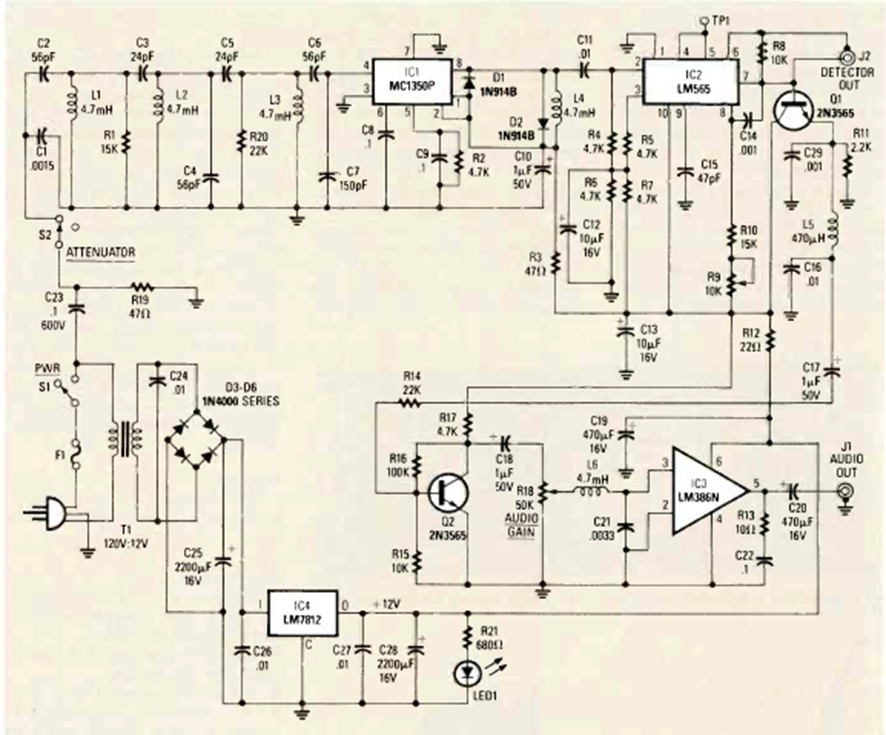

FM Receiver via Power Grid (CIR25197E)
- Details
- Written by: Newton C. Braga
