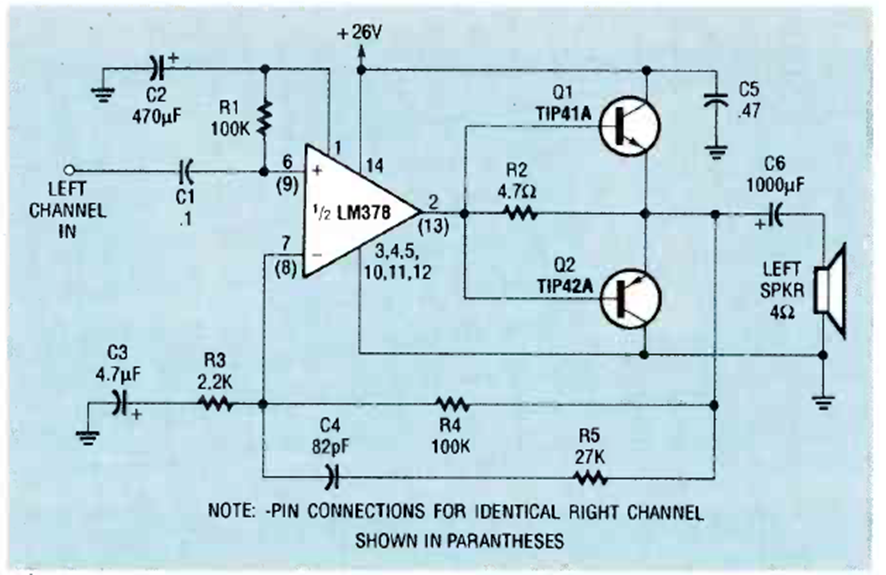

15W Amplifier LM378 (CB25314E)

This circuit provides 15W per channel and can operate with a single power supply. The circuit is from a Radio Electronics from April 1990.

| Clique na imagem para ampliar |
