4-Range AC Millivoltmeter (CB25230E)

Details
Written by: Newton C. Braga

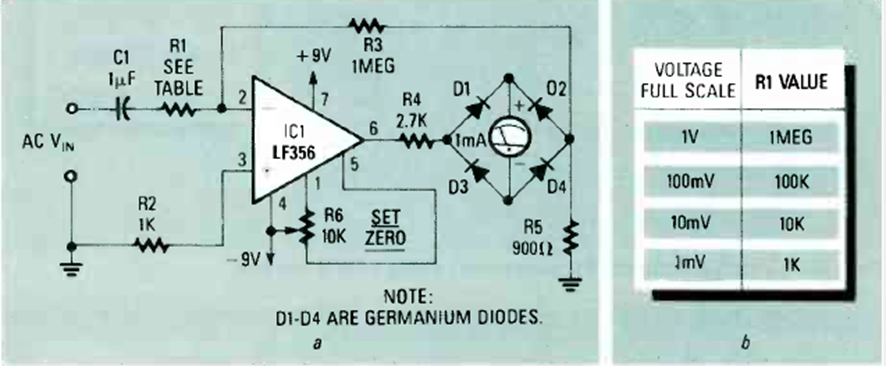

Based on the LF256 operational amplifier, this circuit was found in the September 1989 issue of Radio Electronics magazine. The indicator is analog, and the power supply must be symmetrical.
