AC amplifier gain 10 741 (CB25918E)

Details
Written by: Newton C. Braga

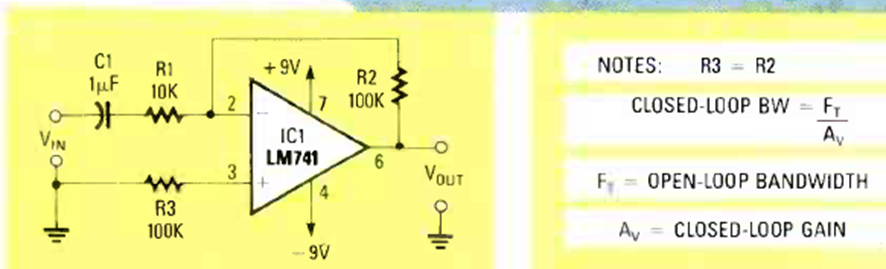

The circuit in the figure is an amplifier with gain 10 for alternating signals using the 741. The circuit is from an article in the Radio Electroics magazine of May 1989.
