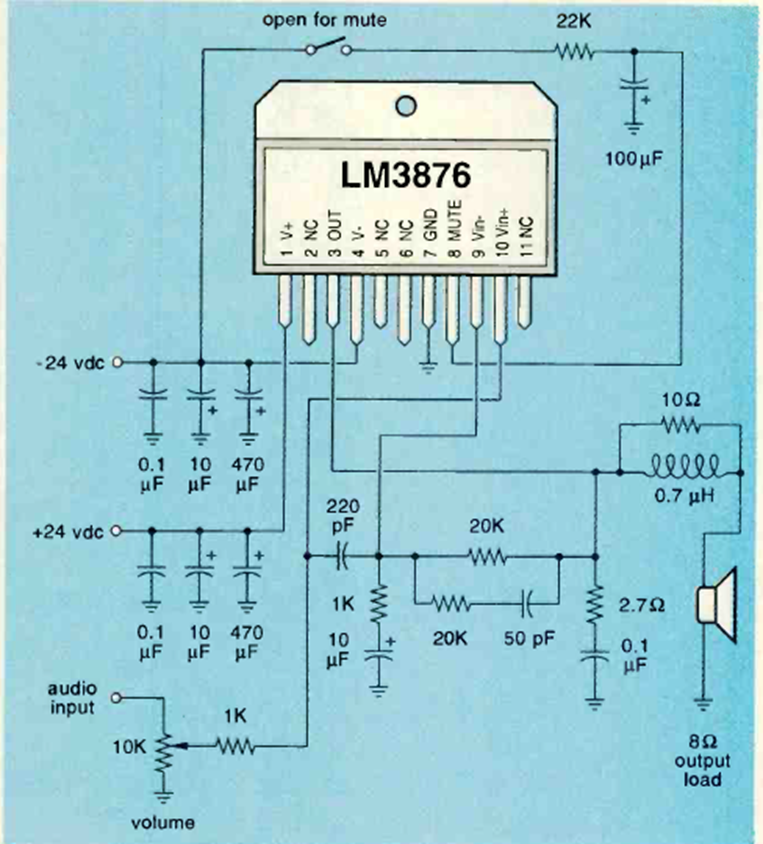

LM3876 Amplifier (CB25725E)

This hybrid audio amplifier from National Semiconductor was found in the June 1994 issue of Electronics Now magazine. It is powered by 24 V.
