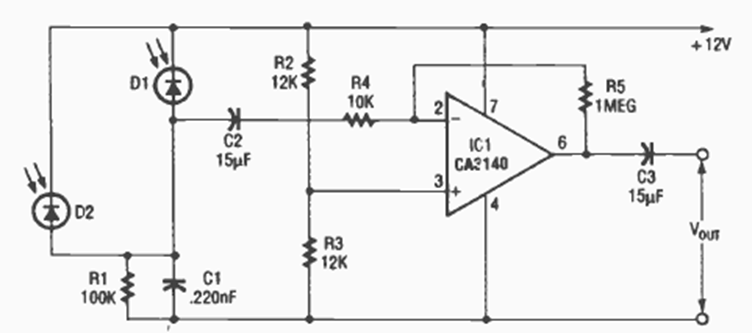

Selective Light Amplifier (CB25488E)

This IR light sensor circuit was found in the July 1992 issue of Radio Electronics magazine. It is tuned for 20 kHz modulated light.
