Speaker Protector (CB25397E)

Details
Written by: Newton C. Braga

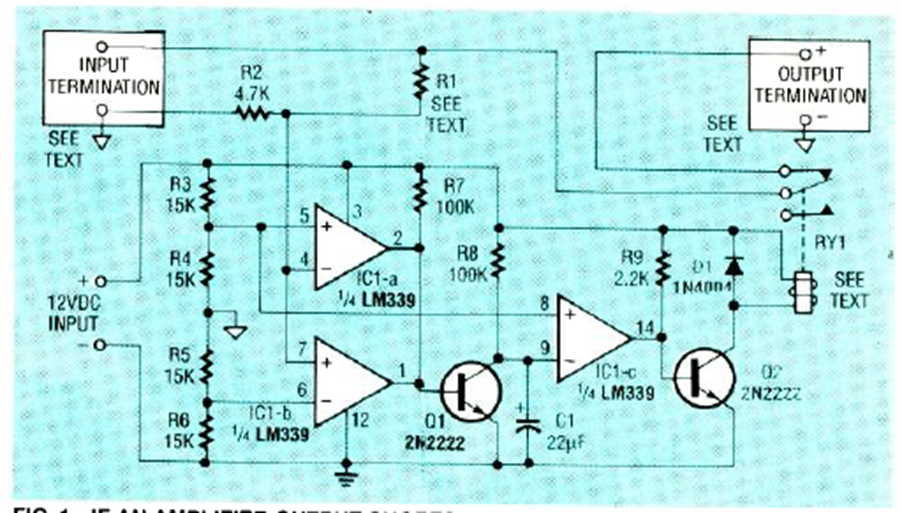

We found this circuit that protects speakers against current surges that occur when the amplifier is turned on in a Radio Electronics from August 1991.




| Clique na imagem para ampliar |
