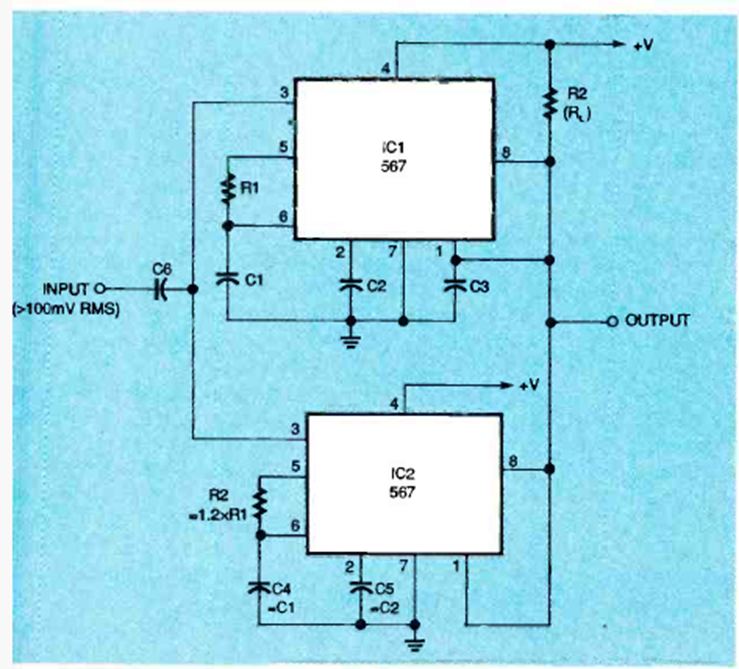

This two-tone decoder has a bandwidth of 24%. The circuit is from a 1994 Electronics Now. The components without the value determine the recognized frequency.
| Clique na imagem para ampliar |
567 Two-Tone Decoder (CB25791E)
- Details
- Written by: Newton C. Braga
