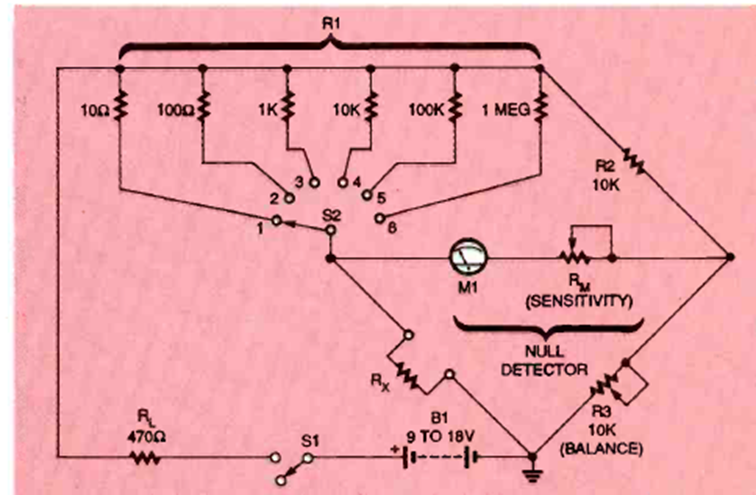

Sensitive Wheatstone Bridge (CB25889E)

Details
Written by: Newton C. Braga



We found this bridge circuit in Electronics Now magazine from September 1995. The instrument can be from 50 uA to 1 mA. The trimpot value depends on this instrument.
