3-Decade Wien Bridge Oscillator (CB25911E)

Details: Written by: Newton C. Braga

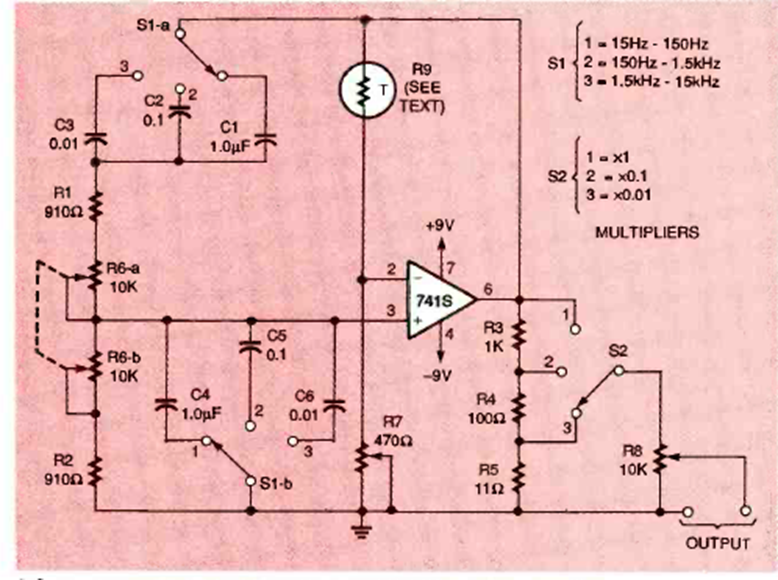

This circuit generates sinusoidal signals from 15 Hz to 15 kHz. The circuit is from Electronics Now magazine from December 1995. The power supply must be dual.
