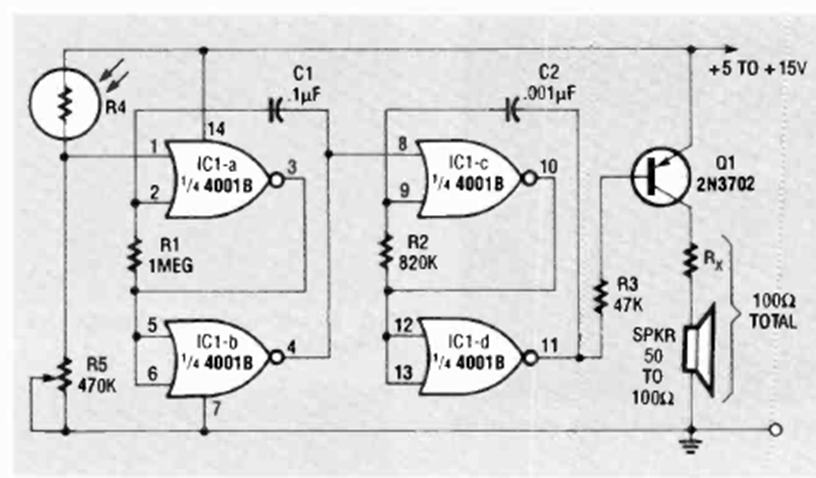

Shadow Alarm with Intermittent Sound (CB25483E)

Details
Written by: Newton C. Braga



This alarm circuit was found in the July 1992 Radio Electronics magazine. The circuit uses a small power stage for the speaker and has the sensitivity adjustment at R5.
