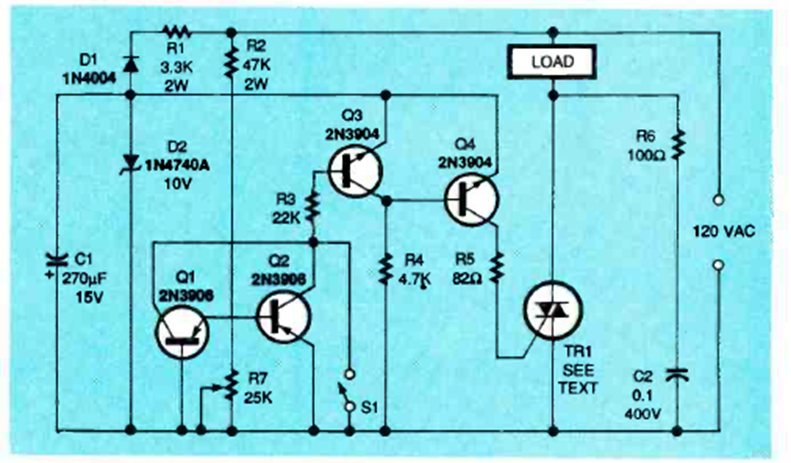

Synchronized AC Switch with Triac (CB25870E)

Details: Written by: Newton C. Braga

This circuit is a modification of the previous one, also found in the July 1995 Electronics Now magazine. The triac must be according to the controlled power.
