Moving hole with the 4017 (CB25433E)

Details
Written by: Newton C. Braga

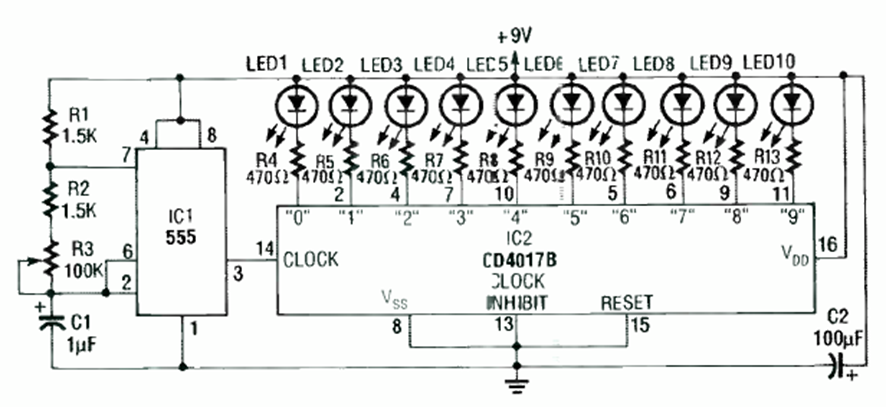

This circuit is from a Radio Electronics magazine from February 1992. The circuit has the effect speed dependent on C1 and adjusted by R3.
