The output voltage of this circuit is approximately four times the supply voltage. The circuit is from an Electronics Now April 1995. The output current is very low.
| Clique na imagem para ampliar |

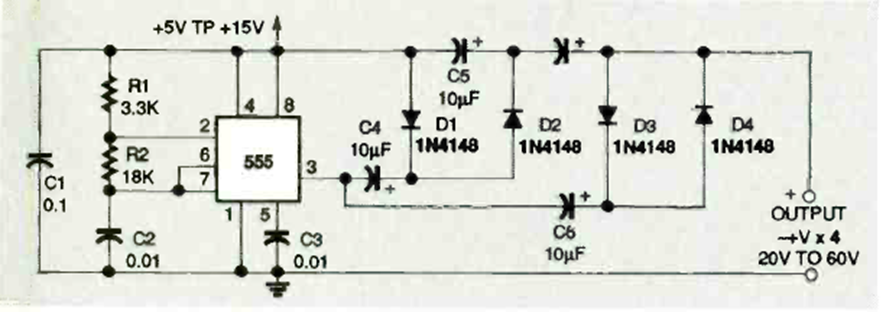

555 Voltage Quadrupler (CB25837E)
- Details
- Written by: Newton C. Braga
