1MHz 100 Gain Amplifier (CB6650E)

Details
Written by: Newton C. Braga

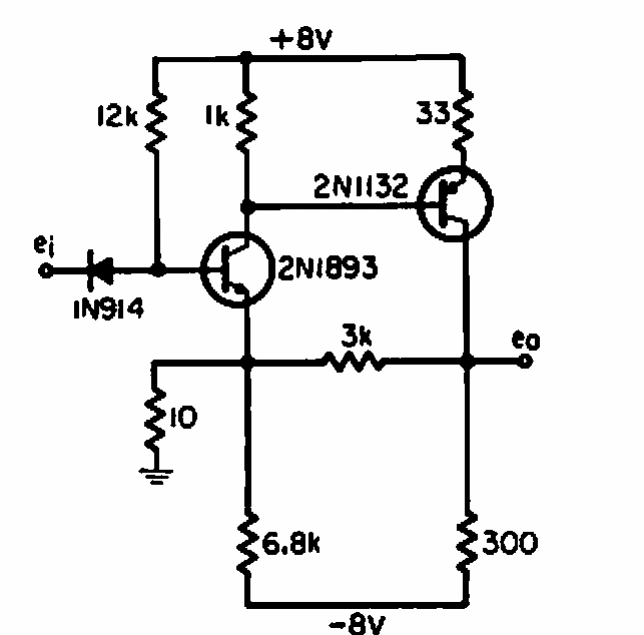

     Found in 1968 documentation this amplifier can be designed based on current transistors. Observe the symmetrical power supply.
