20 MHz divider (CB6829E)

Details
Written by: Newton C. Braga

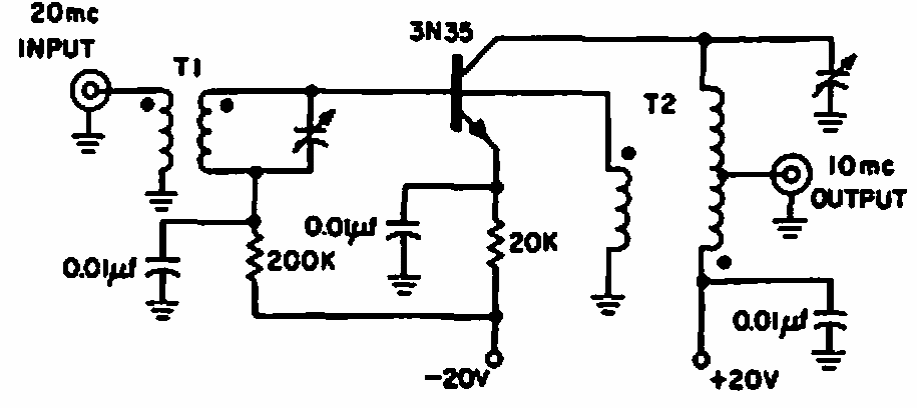

    We found this circuit in a 1964 Electronic Design. It divides the frequency of a 20 MHz signal by 2. The circuit uses a transistor from that time. Details of the coils were not given.
