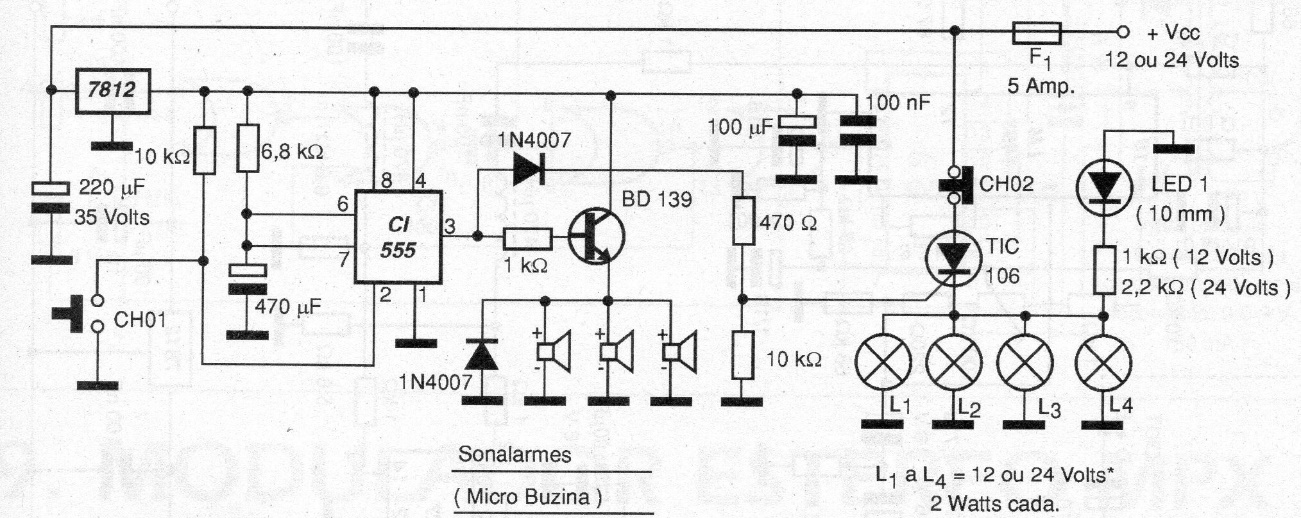

This circuit is from a 2004 documentation. When the passenger presses CH01 the Sonalart will sound for 3 seconds and the warning lamps next to the driver will light up. After the bus for the driver disarms the lamps by briefly pressing CH02. This circuit can be designed in a modern microcontrolled version.
| Clique na imagem para ampliar |
