LASER triggering with Krytron (CB7229E)

Details
Written by: Newton C. Braga

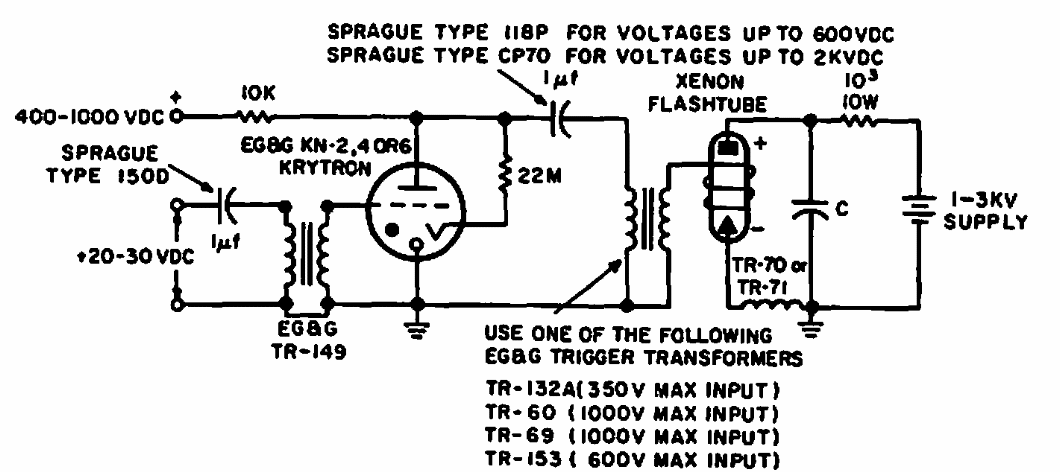

    This 1968 EC&G circuit generates high voltage pulses for firing a gas LASER of the time. The components are rare nowadays.




| Clique na imagem para ampliar |
