Differential Pair (CB6134E)

Details
Written by: Newton C. Braga

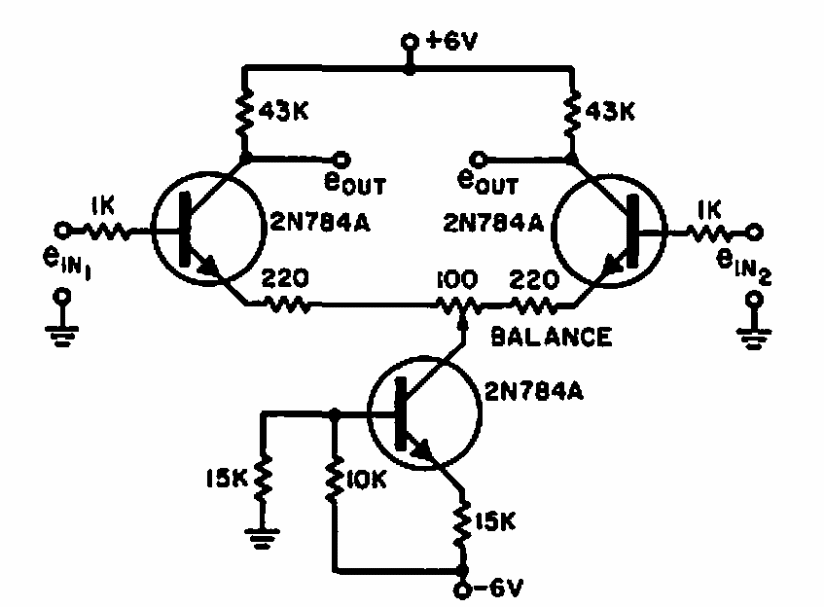

    This differential amplifier, found in a 1964 Electronic Design, has a gain of 30. The setting can be applied to modern equivalent transistors.
