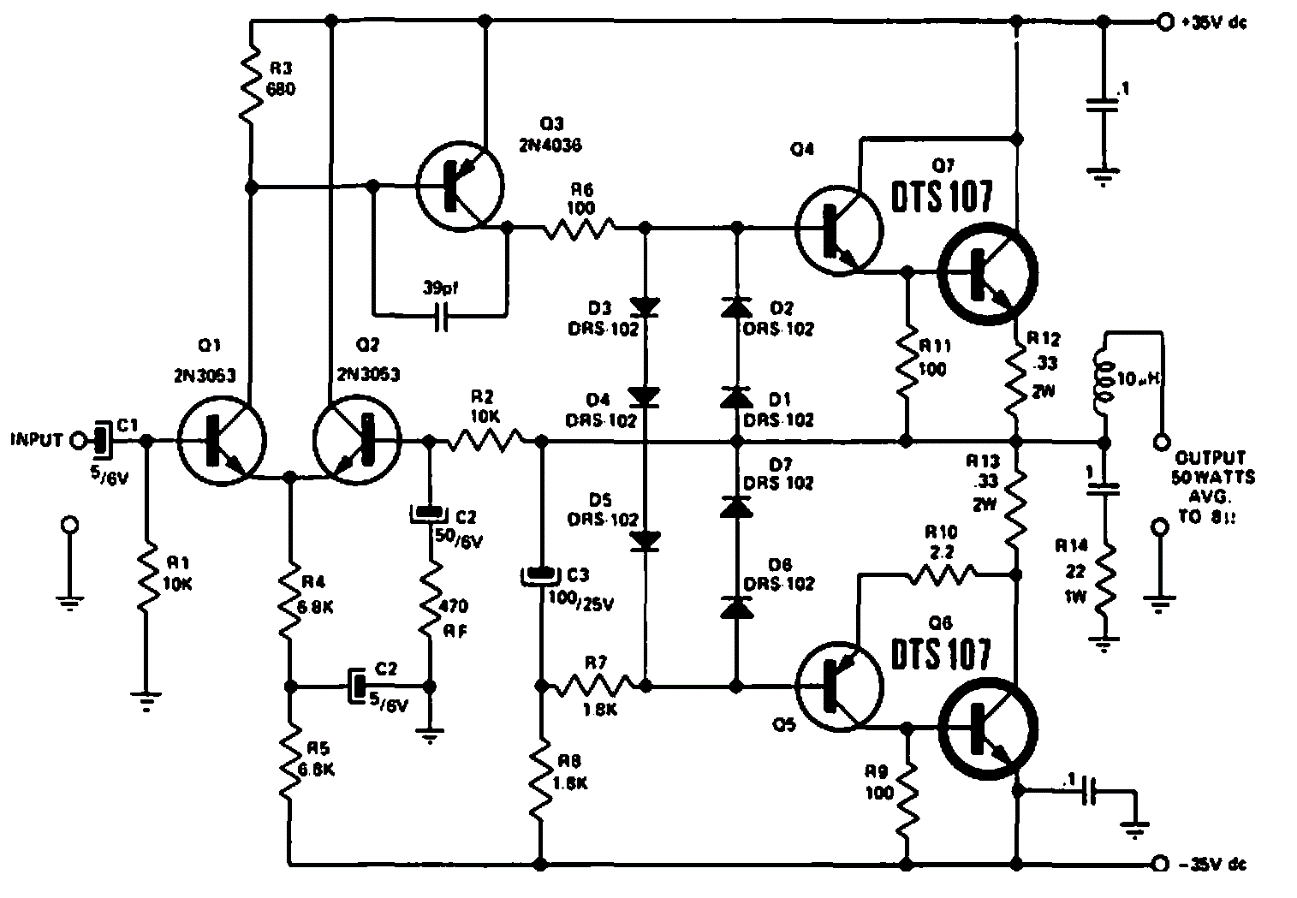

50 W Amplifier (CB6302E)

Details
Written by: Newton C. Braga



     We found this circuit in a Japanese 1968’s documentation. The circuit makes use of transistors from that country common at the time of publication. Observe the symmetrical power supply for the circuit.
