Binary Counter using Relays (CB6607E)

Details
Written by: Newton C. Braga

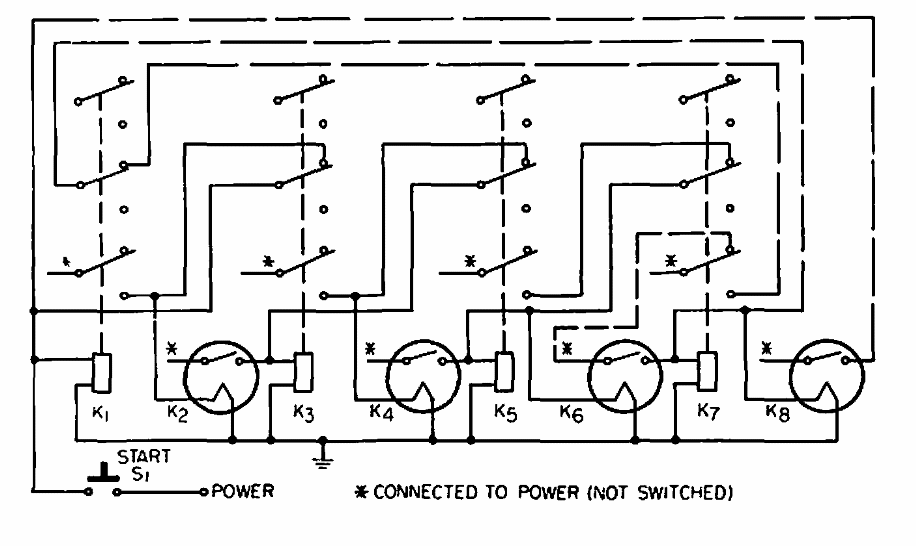

    This circuit was found in a 1967 US publication. In it we have the implementation of a ring counter using only relays. Relay free contacts can trigger indicator lamps or LEDs.
