Suggested by Siliconix in documentation from the 90's, this circuit supports current equivalent components. It can be used as a shield capable of reversing the polarity of the amplified signal.
| Clique na imagem para ampliar |

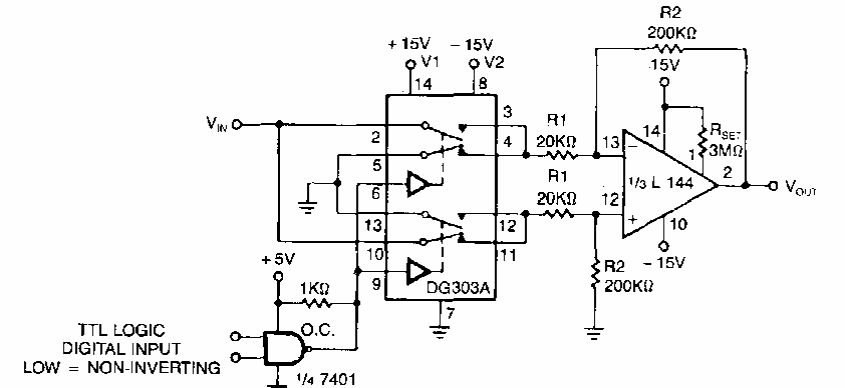

Amplifier with polarity inversion (CB6785E)
