Photo alarm with the 555 (CB6854E)

Details: Written by: Newton C. Braga

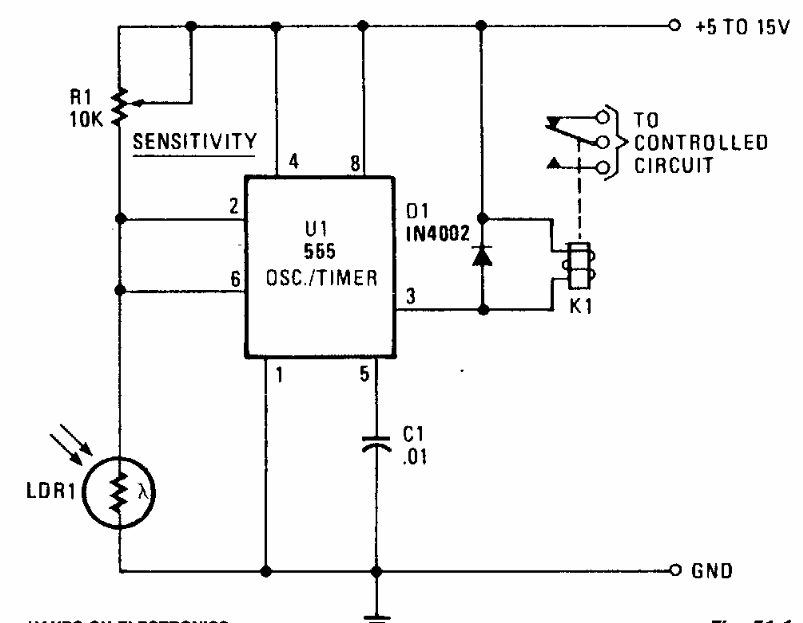

This traditional configuration with the 555 was obtained in an 80s Hands-On Electronics. The relay is of the sensitive type according to the supply voltage.

| Clique na imagem para ampliar |
