Cycloid adapter (CB6908E)

Details
Written by: Newton C. Braga

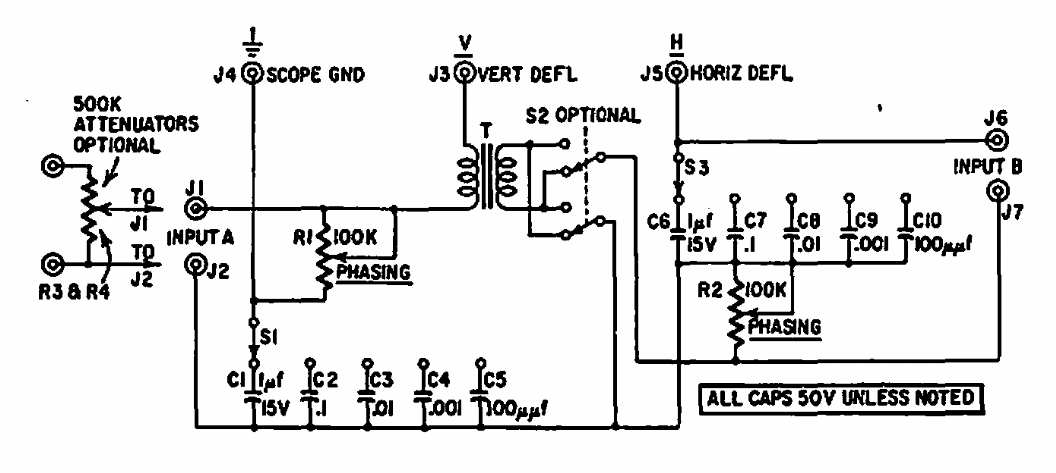

    The purpose of this 1965 Radio Electronics circuit is to observe cycloid waveforms on a standard oscilloscope. The frequency range depends on the switch settings.
