1000 V pulses (CB6930E)

Details
Written by: Newton C. Braga

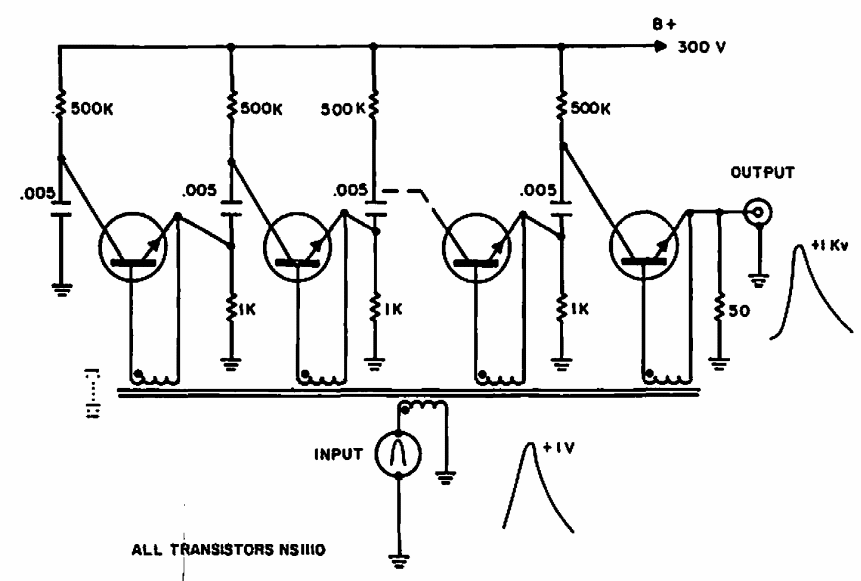

   This circuit was found in an American publication from 1965. The circuit uses components from that time. No information was given about the excitation transformer. Observe the high input power.
