'Push button memory (CB7243E)

Details
Written by: Newton C. Braga

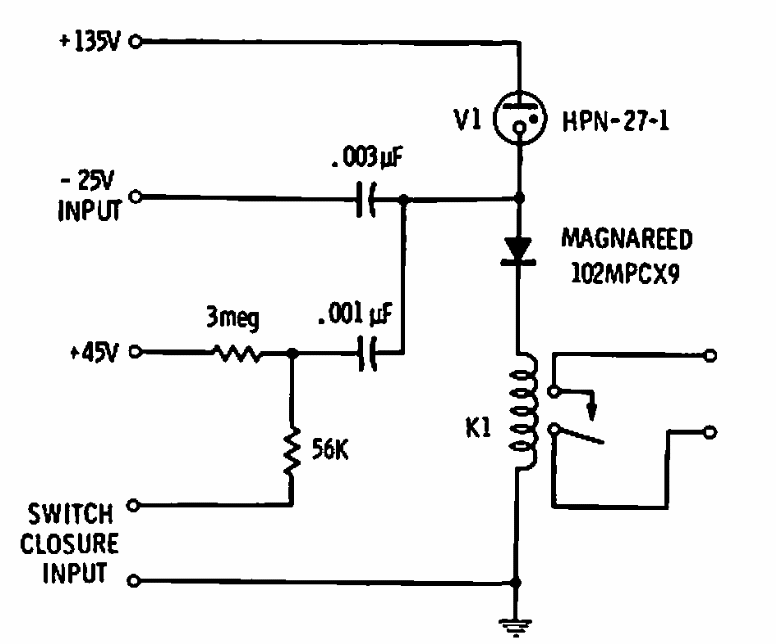

     This circuit was found in an American documentation from 1969. The circuit memorizes when a command pulse activates the relay.
