Variable Capacitor with Transistors (CB6448E)

Details: Written by: Newton C. Braga

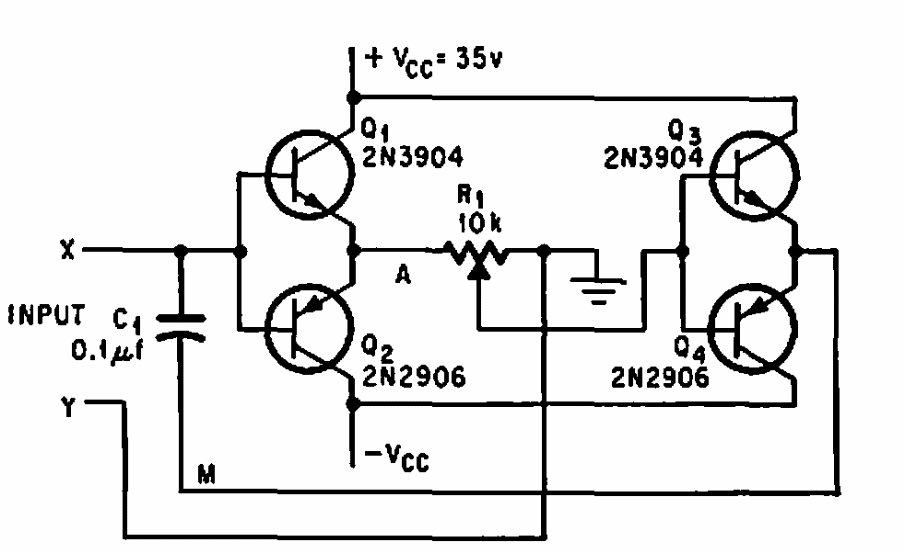

We found this circuit in a 1966 US documentation. It simulates a variable capacitor that can vary capacitance from 1,000 to 1. Transistors are general purpose types.

| Clique na imagem para ampliar |
