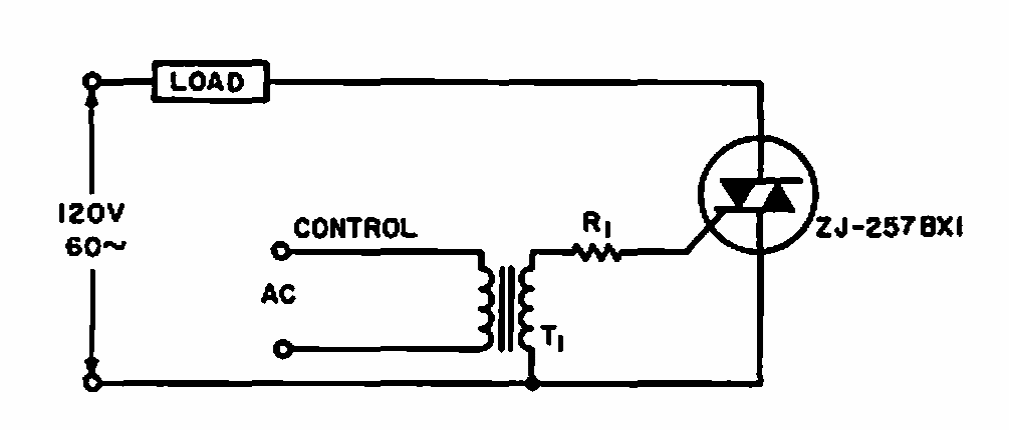

This circuit is from a 1964 Electronic Design, appearing in this section and website with different origins and the same purpose. The transformer can be small supply with 110 V x 6 to 12 V and currents from 100 to 500 mA.
