50 W Amplifier (CB6301E)

Details
Written by: Newton C. Braga

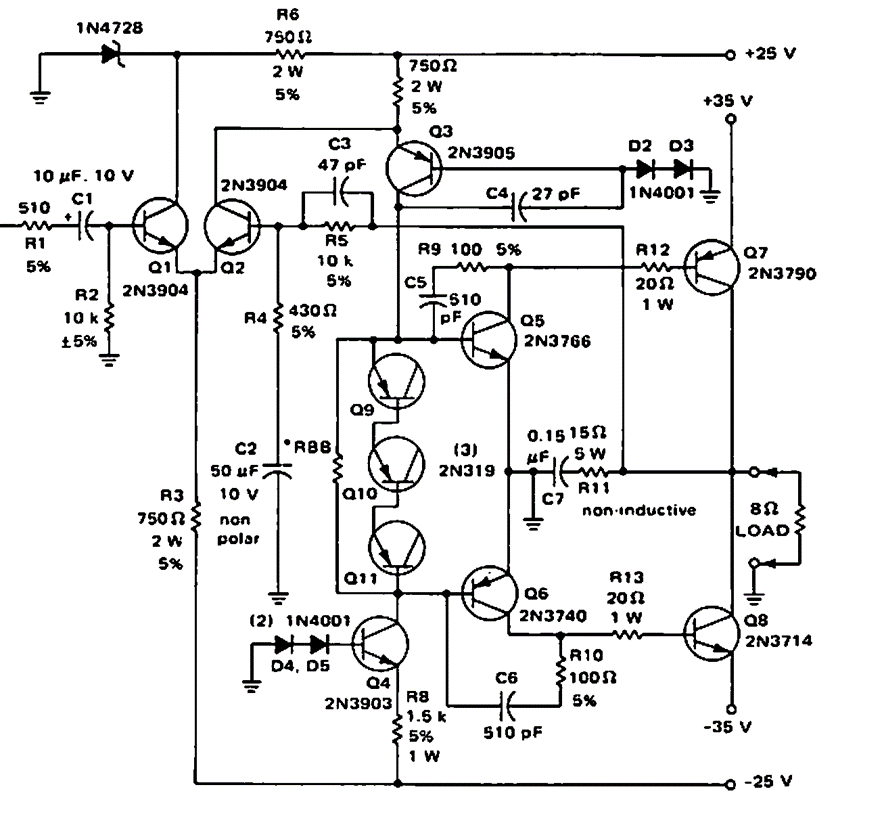

     This 8 ohm output amplifier was found in a 1968 Motorola publication. The circuit uses transistors of the time and is powered with a voltage of 25 V + 25 V.




| Clique na imagem para ampliar |
