Oil change computer (CB6373E)

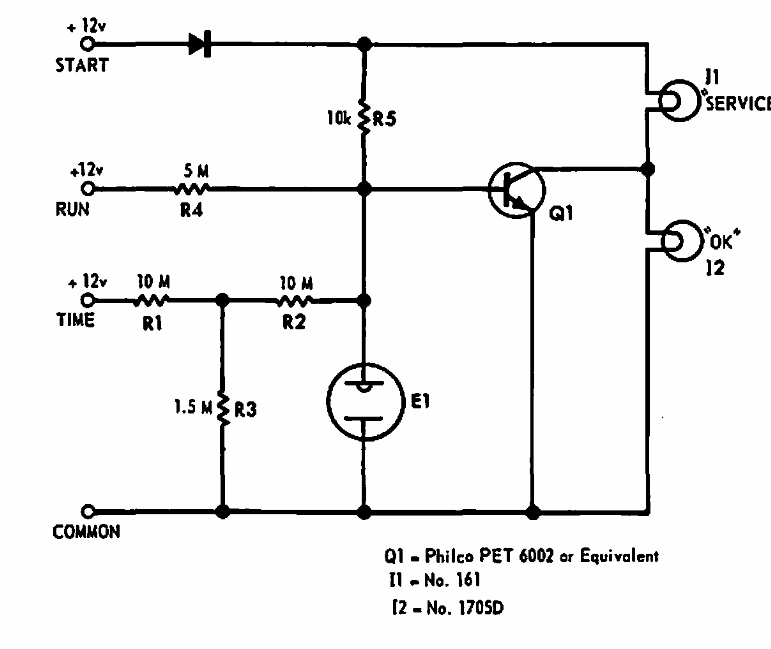

This electrochemical circuit monitors the conductivity of the oil indicating when to change it. The circuit is from an 1967 American documentation.

| Clique na imagem para ampliar |
